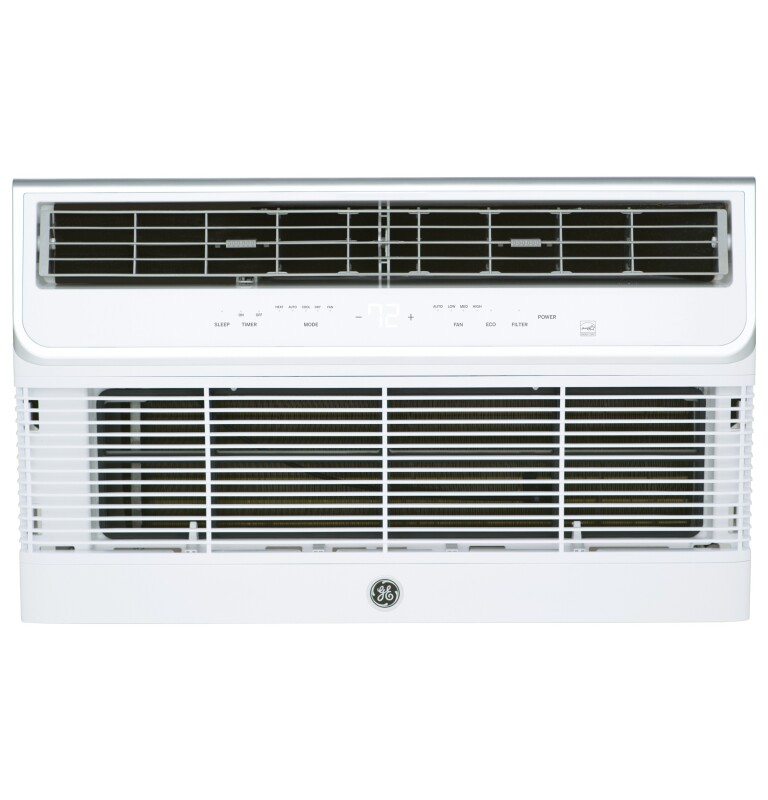

115 Volt Built-In Heat Pump Room Air Conditioners - AJHQ08ACH
115 Volt Built-In Heat Pump Room Air Conditioners
Model: AJHQ08ACH


115 Volt Built-In Heat Pump Room Air Conditioners
Model: AJHQ08ACH
Key Features
True Built In Design
Premium Finish
Electronic Cap Touch Controls
Large LCD Auto-Dimming Display
Slim Room Front
ECO Mode
Dry Mode
Auto Mode
Documents
Available from Local Motive Appliance, serving customers throughout Loveland.
Features
True Built In Design
The ultimate fit & finish for more usable space and the best in built-in installation. Sleeve and chassis are perfectly integrated, creating a seamless fit without leaks or gaps
Premium Finish
Bright, clean color & a decorative metallic silver accent encasing the air discharge louver, provide an overall sleek appearance
Electronic Cap Touch Controls
Controls offer a high-end and smooth to-the-touch panel
Large LCD Auto-Dimming Display
Intuitive & large white LCD display can be easily seen from anywhere in the room. Convenient Auto-Dimming feature provides ambient lighting during the night
Slim Room Front
A slim room front provides more usable space in the room. It’s the sleekest design in the industry
ECO Mode
Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable
Dry Mode
Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification
Auto Mode
Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort
6-Way Directional Airflow
Direct where the air flows with up to 6 directional vents—cooling and/or heating the areas of the room that need it the most
Washable Filter
Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air—providing a cleaner environment
Remote Control Included
Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room
Quiet Performance
Designed & engineered by GE Appliances for ultra-quiet comfort
Commercial Grade
Designed for durability with high-grade components and tested for long performance
Certifications
ADA Compliant
AHAM
CUL
California Prop 65
EEV
UL
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 26 in |
| Approximate Shipping Weight | 85 lb |
| Depth to Louvers | 5 in |
| Overall Height (Excludes Sleeve) | 14.875 in |
| Overall Depth (Excludes Sleeve) | 19.90625 in |
| Overall Width (Excludes Sleeve) | 24.8125 in |
| Net Weight | 85 lb |
| Overall Depth | 21 13/16 in |
| Overall Height | 15 5/8 in |
FEATURES
| Louver Style | 6-Way |
| Control Type | Electronic |
| Fan Speed Selections | 3 Fan Only |
| Optional Grill | RAG13/RAG13A/RAG14E |
| Product Type | Built-In |
| Refrigerant Type | R410A |
| Air Discharge | Over / Under |
| Line Cord Recommended Circuit Prot. (time delay) | 15 Amps |
| Filter Type | Washable |
| Style | Wall Mount Only |
| Chassis Type | Slide-In |
| Plug Type | Parallel/Right Angle LCDI |
| Remote Control | Yes |
| Cord Length | 75" |
| Rotary Compressor | Yes |
| Heating - Reverse Cycle - COP | 3.1 |
| Outdoor Vent / Exhaust | Yes |
| Unit Type | Heat Pump |
| Room Air Conditioner Features | Timer |
| Airflow (cfm) Roomside | 265/225 |
| Room Air Conditioner Features | Remote Control |
| Fan Speed Selections | 3 Cooling |
| Filter Type | Rigid |
| Room Air Conditioner Features | Smart Fan Switch |
| Room Air Conditioner Features | Batteries Included |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 5-year sealed system |
| Parts Warranty | Limited 2-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
POWER / RATINGS
| Cooling - Rated Cooling Amps AHAM | 7.4 |
| Cooling - Watts | 820 |
| Voltage/Hertz/Phase | 115/60/1 |
| Heating - Electric - Heater Watts | 1250 |
| CEER | 9.8 |
| Voltage (MAX) | 115 V |
| Heating - Electric - Heater Amps | 11.0 |
ACCESSORIES
| Wall Case | RAB46/47/48/26 Required At Additional Cost |
APPEARANCE
| Installation | Wall Mounted |
| Color Appearance | Soft Gray |
CAPACITY
| Heating - Electric - BTUH - AHAM - 1R | 3900 |
| Dehumidification (pts./hr.) | 1.9 |
| Heating - Reverse Cycle - BTUH - AHAM - H.P. | 6000/5800 |
| Cooling BTUH (MAX) | 8,200 Btu |
Dimensions & Weight
| Width | 26 in. |
| Height | 15.63 in. |
| Length | 21.81 in. |
| Weight | 85 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31 in. |
| Shipping Height | 20.63 in. |
| Shipping Length | 26.81 in. |
| Shipping Weight | 125 lbs. |
| Total of Shipping Weight | 125 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 5.13 ft³ |
| Dimensional Weight | 63.75 lbs. |
| Total of Cubes | 5.13 ft³ |
| Total of Dimensional Weight | 63.75 lbs. |
